Bridge regluing and brace repairs on an acoustic guitar. Canyon W-70
The bridge outside and the braces inside the body need separate checks. Here is how these repairs are prepared, and why glue alone is not enough.
Two areas to inspect separately
The bridge is glued to the outside of the soundboard. The braces sit inside the body. Access differs, so looking down at the bridge cannot replace an internal inspection.
In the workshop we establish exactly where a joint has separated and what work is needed. Not every guitar with a loose bridge also has a bracing problem. If both areas need attention, however, they should be addressed in the same repair plan.
Preparing the bridge for regluing
Before applying glue, prepare the mating surfaces and check the fit between bridge and soundboard. Positioning clamps and cauls in advance helps establish whether pressure will reach the right places. This dry run happens before the glue’s working time becomes a constraint.
Pushing an arbitrary glue into a visible gap is no substitute for assessment. The separation visible from outside may not reveal the condition of the whole joint.
Repairing a loose brace
With a brace, identify how far the joint has separated, clean the repair area and choose a clamping method suited to its position inside the body. Limited access means tools and cauls need preparing before gluing. A brace near the soundhole may require a different approach from one deeper inside.
There is no single clamping arrangement for every guitar. The position and condition of the joint, and the ability to support it without damaging surrounding areas, determine the approach.
From our workbench: Canyon W-70

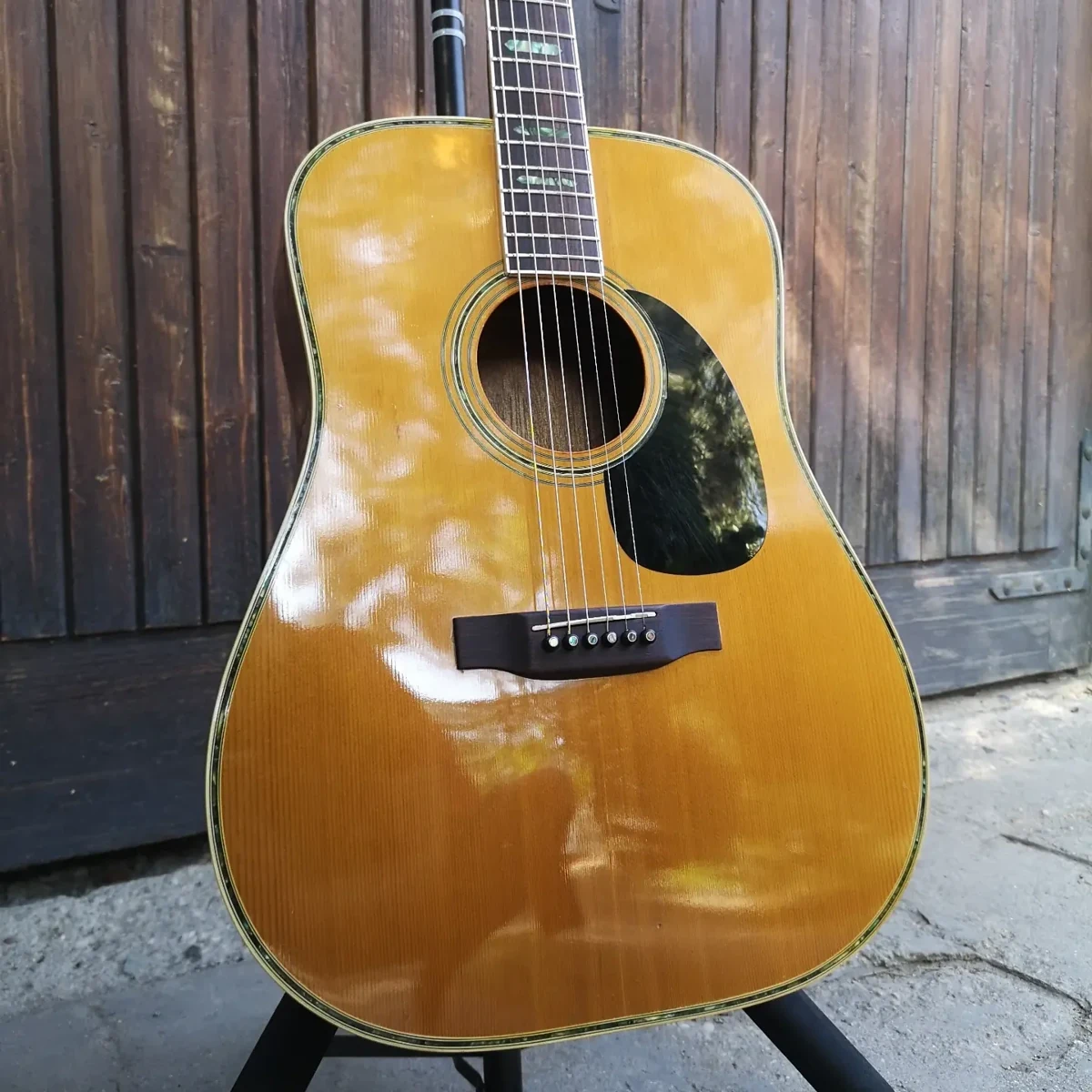

Our Canyon W-70 received a bridge reglue and bracing repairs, along with fingerboard correction and a refret. We also fitted a handmade bone nut, a new saddle and bridge pins.
The project combined body repairs with work on the playing surface and string-support components. These operations are not interchangeable: glued joints and frets meet different needs within the instrument.
Reporting a similar problem
If you notice a gap at the bridge, take clear photographs from the side and describe when it appeared. Do not try to force it shut or select glue from a photograph alone. An inspection establishes the repair scope and checks areas that cannot be seen from outside.
Further reading
For a closer look at gluing work, StewMac shows examples of bridge fitting and preparing clamps for loose braces.
